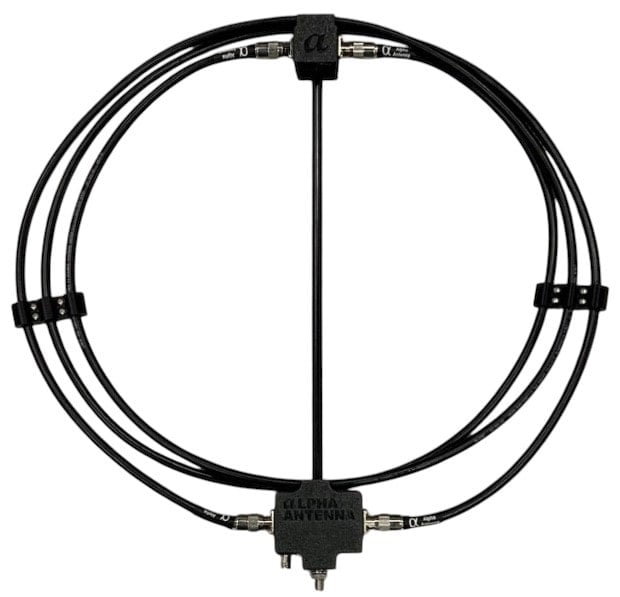

Digital Mode HF-1GHz MiniLoop Antenna – Alpha Antenna

Digital Mode HF-1GHz Antenna (MiniLoop)

Portable broadband magnetic loop antenna engineered for digital communications from HF through 1GHz. Receive from 1.8MHz to 1GHz; transmit digital modes from 10–54MHz without a tuner. Supports SCADA, MIL-STD-188, NVIS/groundwave, and clandestine field operations.

• Receive: 1.8MHz–1GHz (low noise for digital modes)
• Transmit: 10–54MHz digital, no tuner required
• Power: 5W minimum; 25W continuous digital / 100W bursts (≤1 min)
• Range: 0–2500 km on 10–30MHz
• Weight: 5 lbs | Dimensions: 36×5×24 inches
• MIL-STD-188 M110a compatible
• Deployable in backpacks, vehicles, or indoor concealed positions
• Two deployment configurations (NVIS / groundwave)
